Product / ORION® HX Deluxe Non-Linear Junction Detector
Interchangeable NLJD Antennas

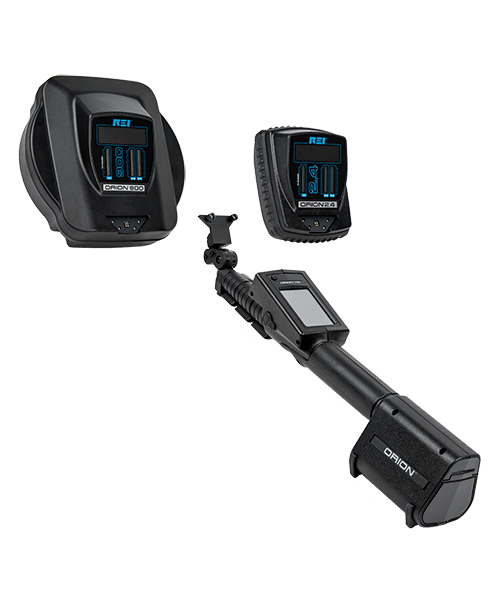

The hand-held ORION HX Deluxe Non-Linear Junction Detector (NLJD) has interchangeable 2.4 GHz and 900 MHz antenna heads. The ORION HX Deluxe NLJD is used to sweep areas for electronic semi-conductor components. In this way, the ORION HX Deluxe NLJD detects and helps to locate hidden electronics or eavesdropping devices regardless of whether the electronic device is turned on.Efficiency: users can detect
both small, modern circuitry in office environments with the 2.4
antenna and older, less refined circuitry through dense materials
with the 900 antenna
Usability: antenna heads are

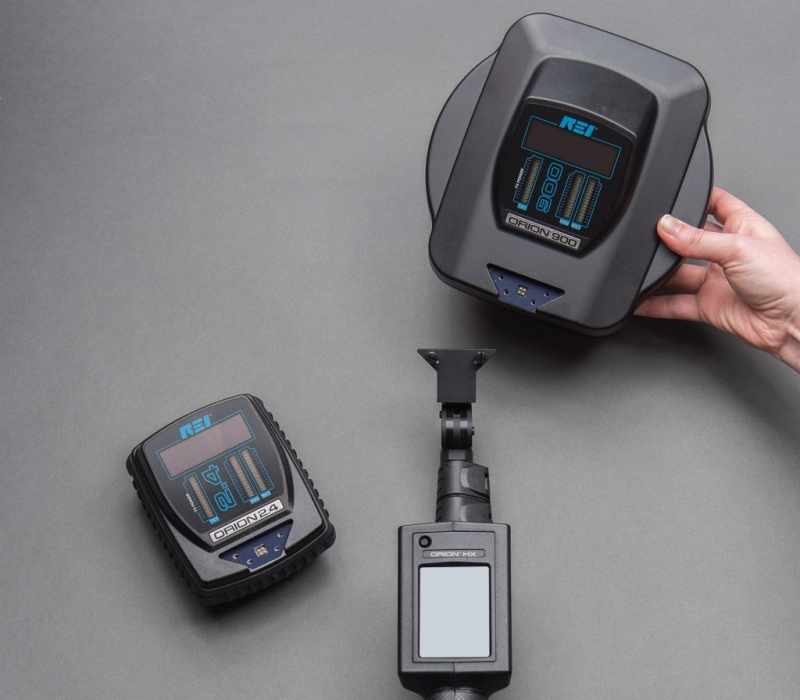

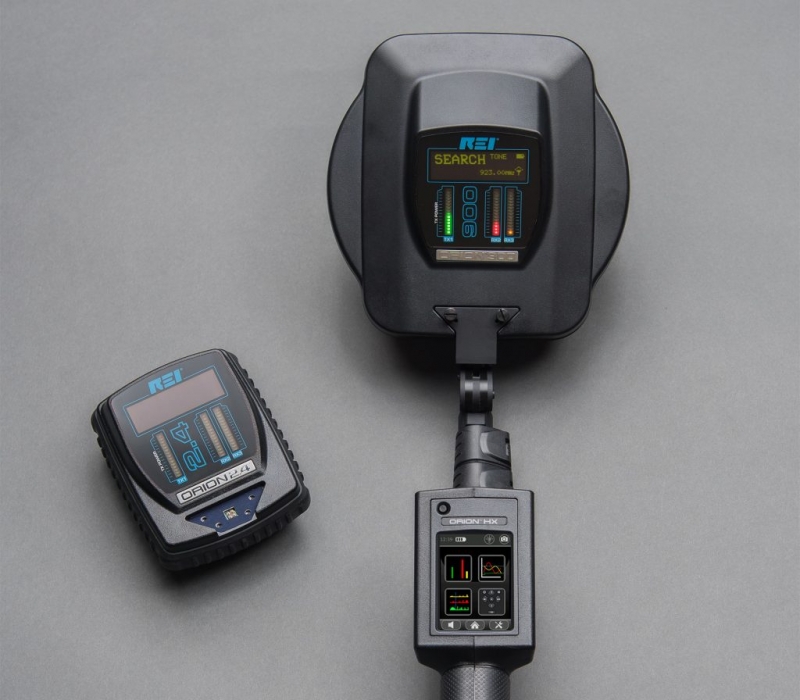

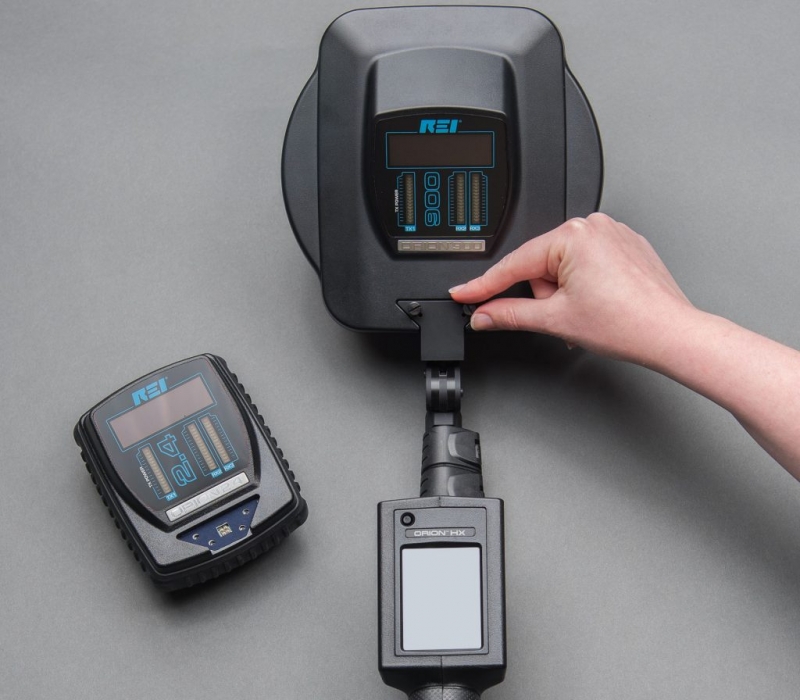

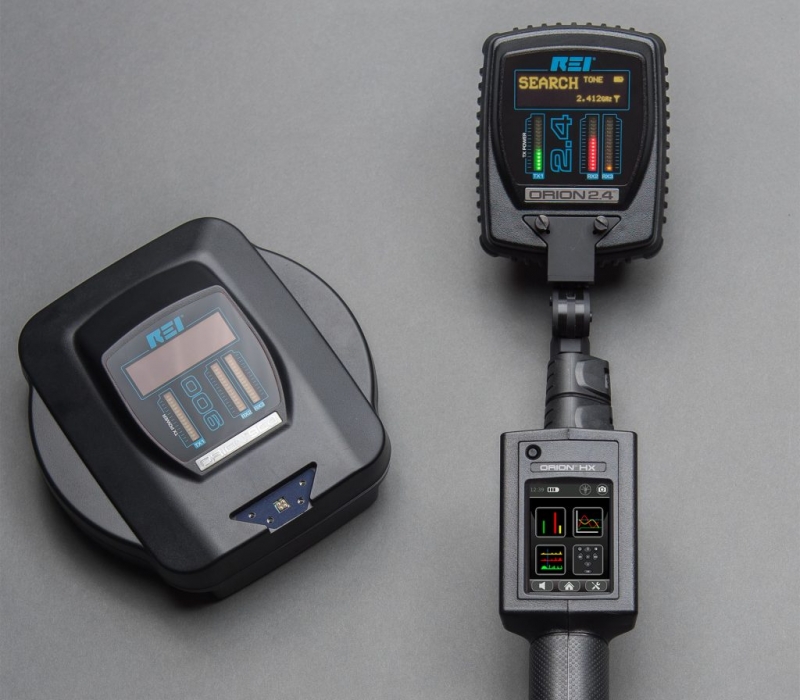

easily exchanged by simply turning a pair of thumb screws
Portability: lightweight

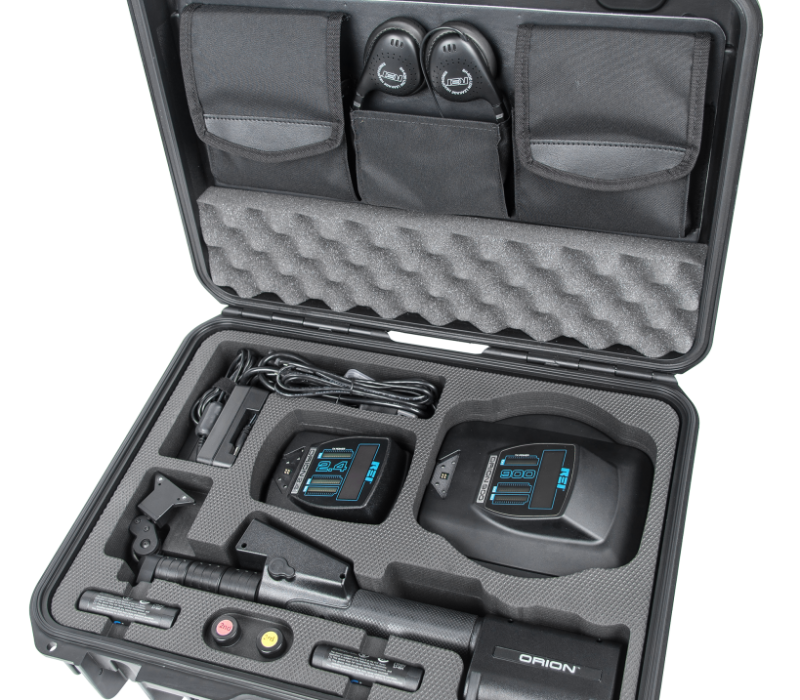

design with convenient carrying case
Features
- Digitally modulated transmit signal
- Correlated 2nd & 3rd harmonic response
- Adjustable DSP gain
- Histogram graph displays continuous history of harmonic response and power adjustment
- Spectrum View (HX models) shows 2nd and 3rd harmonic spectrum graphs in several display options
- Touch screen displays the full RF spectrum for transmit, 2nd, or 3rd frequency ranges
- 1.25 MHz-wide bandwidth transmit signal increases detection sensitivity
- Alert tones and haptic (vibration) alert can be selected to alert when signal levels surpass the trip levels
- Line-of-sight antenna mounted display and LED head lamp allows user to focus eyes on sweeping target and display at same time, even in dark areas
- No pole or cable assembly required with integrated telescoping pole
- Circularly polarized transmit and receive antenna removes the risk of missing a threat due to incorrect antenna polarization
Applications
- Technical Surveillance Countermeasures (TSCM)
- Counter Surveillance
- Non-Linear Junction Detection
- Locating Hidden Electronics
- Locating Electronic Contraband
- Intelligence Protection
- Executive Protection
- Eavesdropping Detection
- Surveillance Equipment Detection
- Electronic Surveillance Detection
Specifications
| Project | Performance |
|---|---|
| TRANSMITTER | |
| 2.4 antenna transmit power: | 3.3 W; G model: 6.6 W |
| 900 antenna transmit power: | 1.4 W; G model: 3.2 W |
| Power control: | manual or auto control |
| 2.4 antenna frequency band: | 2.404 GHz - 2.472 GHz |
| 900 antenna frequency band: | 905 - 925 MHz; G model: 840 - 960 MHz |
| Transmit channels: | manual or auto selection, more than 60 available |
| Transmit modulation: | pulsing, digital spread spectrum, 1.25 MHz bandwidth |
| Please note: | G model authorized for use only by agencies, persons and entities not restricted by FCC & IC. Both models are CE marked for public safety and security. |
| RECEIVER | |
| Simultaneous 2nd & 3rd harmonic receive Digitally correlated | |
| 2.4 antenna frequency band: | Second Harmonic (4.808 GHz – 4.944 GHz) Third Harmonic: (7.212 GHz – 7.416 GHz) |
| 900 antenna frequency band: | Second Harmonic (1810 MHz - 1850 MHz); G model (1680 MHz - 1920 MHz) Third Harmonic: (2715 MHz - 2775 MHz); G model (2520 MHz - 2880 MHz) |
| 2.4 antenna sensitivity: | -140 dBm for both harmonics |
| 900 antenna sensitivity: | -130 dBm for both harmonics |
| DISPLAY | |
| Handle-mounted 2.7 inch touch screen controller display Antenna-mounted display | |
| Bar graph display for transmit power level, 2nd harmonic level, 3rd harmonic level, data field display, for other information (operation mode, low battery, volume, DSP gain, etc.) | |
| MECHANICAL | |
| Extension lengths: | 16-51 in (40.6 - 129.5 cm) |
| Case dimensions: | 6.25 in x 14.9 in x 18.5 in (15.9 cm x 37.8 cm x 47.0 cm) |
| ORION HX Deluxe dimensions (2.4 antenna): | 22.4 in x 3.75 in x 3 in (57 cm x 9 cm x 7.5 cm) |
| ORION HX Deluxe dimensions (900 antenna): | 23 in x 3.75 in x 3 in (58.4 cm x 9 cm x 7.5 cm) |
| Overall Extended Length: | 58 in (147 cm) |
| ORION HX Deluxe weight w/ battery (2.4 antenna): | 3 lbs (1.4 kg) |
| ORION HX Deluxe weight w/ battery (900 antenna): | 3.6 lbs (1.6 kg) |
| ORION HX Deluxe case and contents weight | 14 lbs (6.4 kg) |
| HX touchscreen Ingress Protection (IP) rating | IP63 |
| BATTERY | |
| Input AC: | 100-240 V, 50-60 Hz |
| Run time: | >4 hours per battery (typical) |
| Charge time: | 2.5 hours per battery |
| Batteries: | Lithium ion rechargeable (2 included) |
| The supplied battery pack: | RRC Power Solutions Lithium Ion Rechargeable Battery pack Model #RRC2040 |
| THERMAL | |
| Operating temperature: | -10 to 50°C |
| Battery charging temperature: | 5 to 37°C |
| Storage temperature: | -20 to 60°C |
| Note: | extended storage at temperatures above 40°C could degrade battery & OLED display performance and life. |
