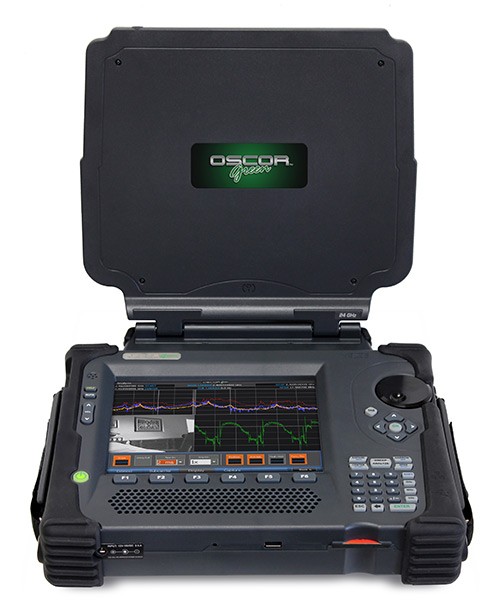

OSCOR® Green Spectrum Analyzer

Portable RF Detection & Analysis

The OSCOR Green Spectrum Analyzer is designed to detect illicit eavesdropping signals, perform site surveys for communication systems, conduct radio frequency (RF) emissions analysis, and investigate misuse of the RF spectrum. The OSCOR Green is a portable spectrum analyzer that sweeps 24 GHz in one second to quickly detect transmitting electronic surveillance devices and ensure that spectrum activity is captured.
Efficiency: reference and target traces are quickly attained, stored, and compared for rapid analysis and a waterfall display generates a spectrogram of receiver traces over time
Usability: employs a touch screen interface, remote access capabilities, and built-in software
Portability: weighs less than ten pounds and does not require additional antennas or cables; battery power lasts 3-4 hours

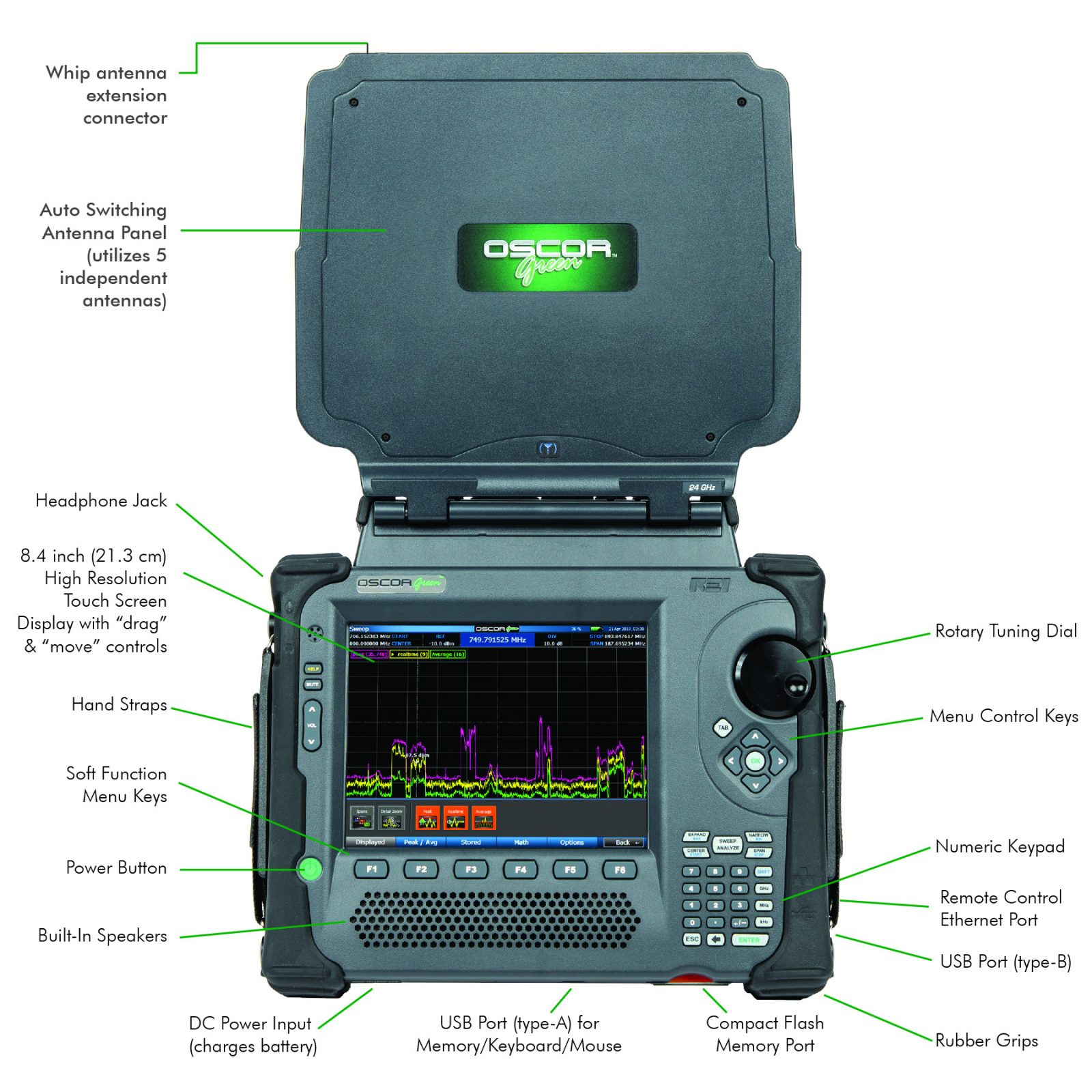

Features

  • Scans 24 GHz in 1 second ensuring spectrum activity is captured (2,000,000 data points per second)
  • Built-in software and auto switching antenna system to 24 GHz means no additional antennas, cables, or laptop are required
  • Touch screen allows you to pan, zoom, drag, and move
  • The lightweight unit weighs only 9.6 lbs/4.4 kg providing bench-top spectrum analyzer capabilities in portable design
  • Battery run time is 3-4 hours

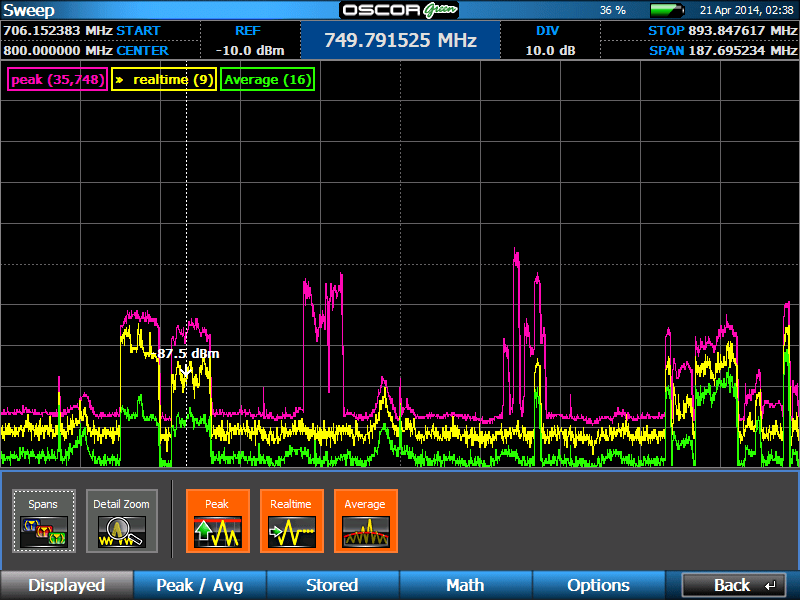

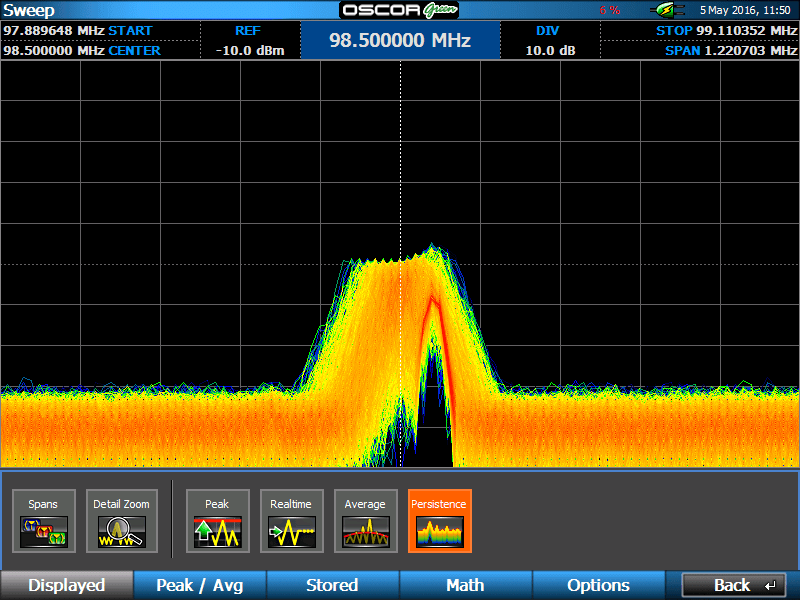

  • RF traces are easily mapped; reference and target traces are quickly captured, stored, and compared (including differences) for rapid analysis
  • Quickly identify localized RF energy transmissions and generate signal lists

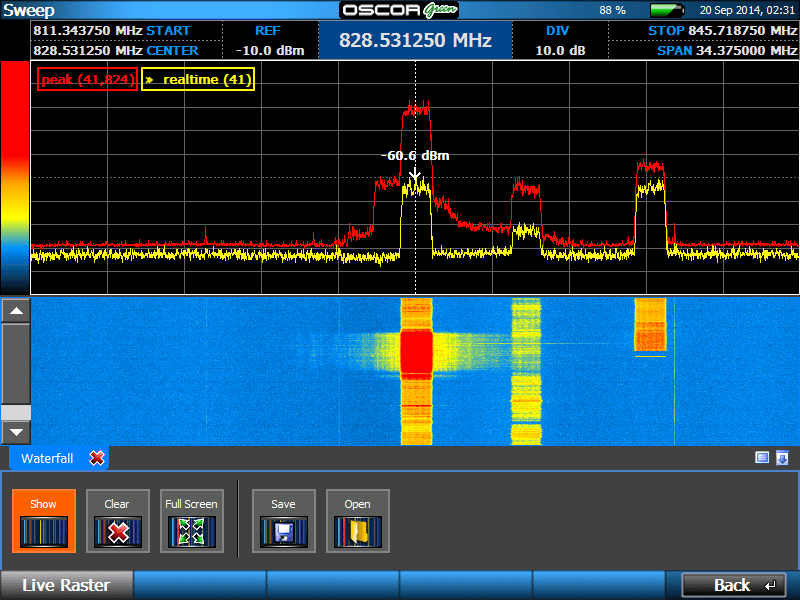

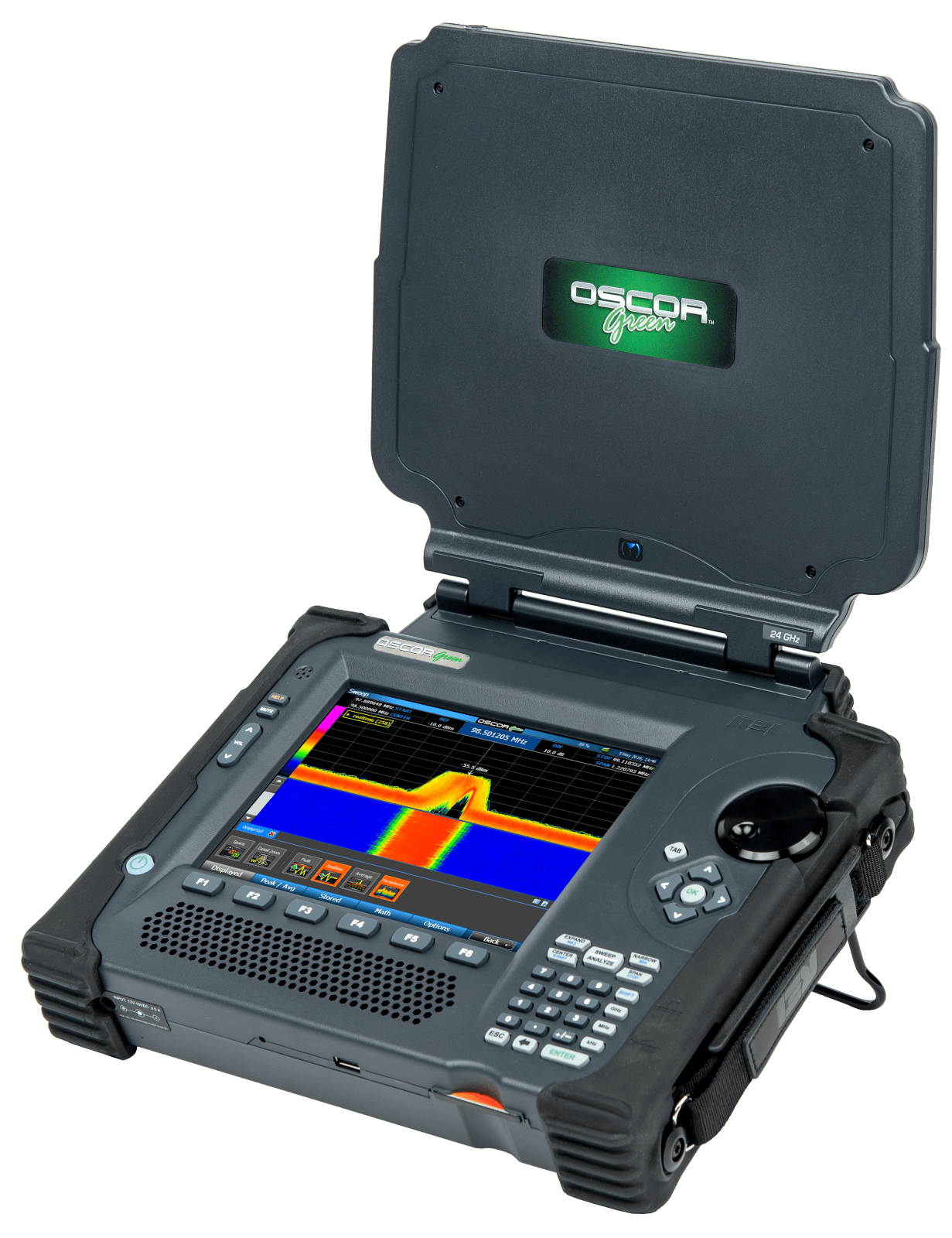

  • Spectrogram (Waterfall) display generates Spectrogram of receiver traces over time
  • Built in demodulators: AM, FM, SSB, subcarrier, and video (displayed on screen)
  • Connect remotely to the OSCOR Green™ with 3rd party virtual network computing software

Applications

  • Technical Surveillance Countermeasures (TSCM)
  • Counter Surveillance
  • Radio Frequency (RF) Detection
  • Radio Frequency (RF) Analysis
  • Spectrum Analysis
  • Signal Analysis
  • Intelligence Protection
  • Executive Protection
  • Eavesdropping Detection
  • Surveillance Equipment Detection
  • Electronic Surveillance Detection

Specifications

Project Performance
RF SYSTEM - 24 GHz
Frequency: 24 GHz model: 10 kHz to 24 GHz
Displayed Average Noise Level (DANL) at 25 kHz resolution bandwidth:
Without preamplifier: -100 dBm
With preamplifier: -110 dBm
Sweep speed 24 GHz/second
Preamplifier: DC-8 GHz: 10 dB
Attenuation DC-24 GHz: 0 dB, -10 dB, -20 dB, -30 dB
Dynamic range:
Min/max range 90 dB
SFDR 80 dB
AUDIO SYSTEM
Demodulation types: AM, FM
Filter sizes: 800 kHz, 200 kHz, 12.5 kHz, 6.25 kHz, 2 kHz
Subcarrier filters 6.25 kHz, 12.5 kHz, 200 kHz
Headphone output (low leakage headphones included) Built-in speakers
VIDEO SYSTEM
Formats: NTSC, PAL, SECAM
Demodulation: AM, FM
Filter sizes: 12.75 MHz, 6.375 MHz
Subcarrier filters: 6.25 kHz, 12.5 kHz, 200 kHz
Built-in auto switching antenna system
Frequency: 10 kHz to 24 GHz

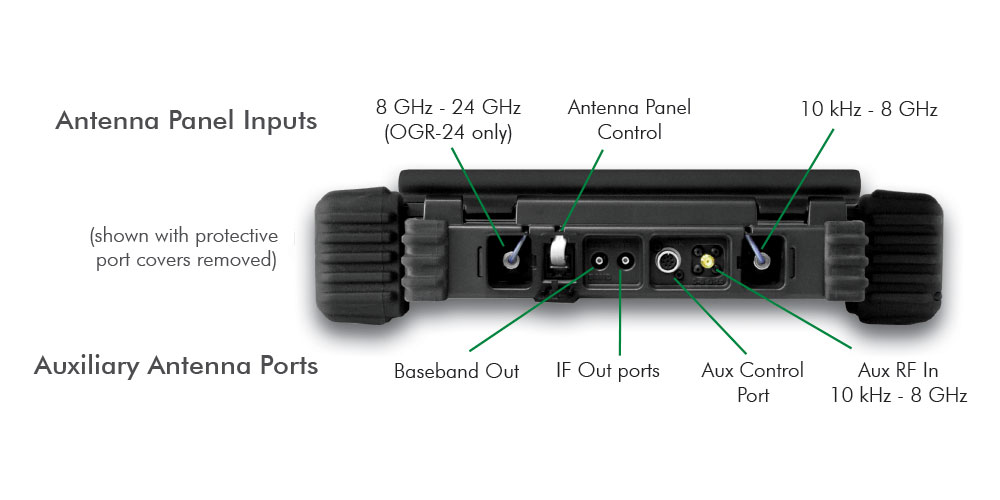

INPUTS/OUTPUTS
Aux RF in: 10 kHz to 8 GHz
Baseband out: DC – 6 MHz
Expansion: Aux Control Port for MPP
IF out: 25 MHz wide centered at 75 MHz
USB Port (A type): for peripherals (Keyboard, Mouse)
Integrated touch screen with 8.4” display
Universal power supply included: 100-240 VAC, 50-60 Hz
Removable battery: Rechargeable Lithium ion, 4-hour runtime (typical)
MECHANICAL
Dimensions: 11.5 in x 13.2 in x 3.0 in (29.2 cm x 33.5 cm x 7.6 cm)
Unit weight with battery: 9.6 lbs (4.4 kg)
Case dimensions: 5.4 in x 14.9 in x 19.5 in (14 cm x 37.8 cm x 49.5 cm)
Case weight with unit and accessories: 21.0 lbs (9.5 kg)
Operating temperature: 0° C to +50° C
Note: It is recommended to run the unit on battery power above +40°C. The supplied AC adapter's operating temperature is 0°C to +40°C.
