MESA® 2.0 Deluxe Mobility Enhanced Spectrum Analyzer

A Portable Spectrum Analyzer and Much More

MESA® 2.0 is a portable, handheld RF receiver that detects known, unknown, illegal, disruptive or interfering transmissions. MESA® 2.0 has the portability and operational features not found on other spectrum analyzers. It provides tools, specifications, and design features for locating unknown signals throughout a wide frequency range up to 6 GHz (*12 GHz with the Down Converter antenna).
Click here to see new WiFi detection features in MESA 2.0
Efficiency: MESA® 2.0 is easy to set up and puts sweep data at your fingertips with user-friendly navigation. Auto antenna recognition makes changing antennas a snap.

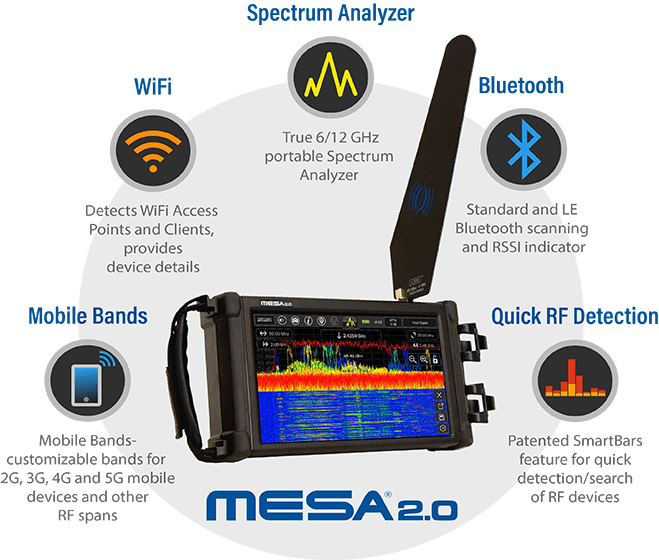

Usability: Full touchscreen control provides quick access to Spectrum, WiFi, Bluetooth®, Mobile Bands, and (Patented) SmartBars™ modes.
Portability: Portable, handheld battery powered unit can sweep target areas using a full selection of fixed, bracket mounted, and handheld antennas/probes.

Features

  • MESA® 2.0 displays a full range of frequency data to 6GHz (*12GHz with the Down Converter Antenna)
  • Sweep modes:

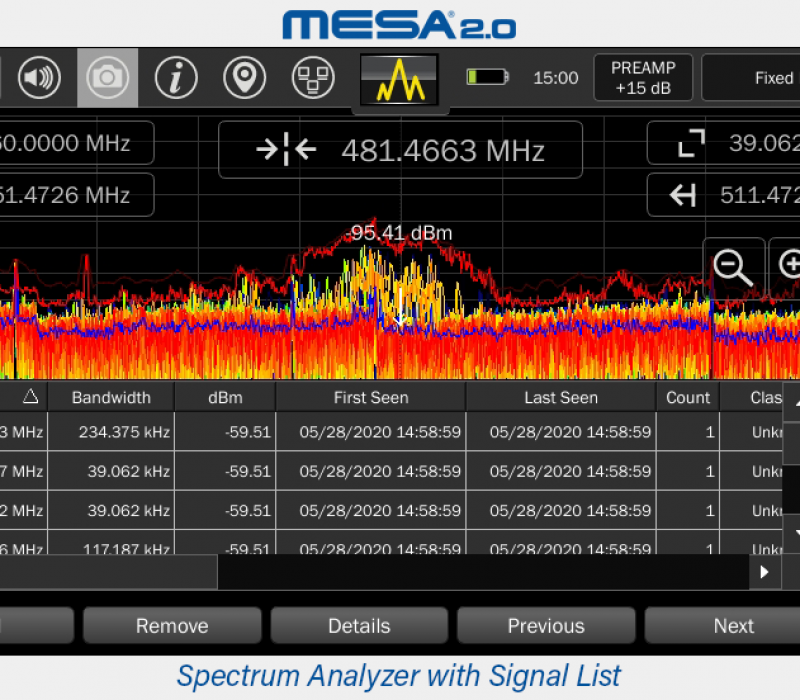

    • Spectrum Analyzer: zoom, screen lock, frequency span, start/stop frequencies, resolution bandwidth, center frequency
    • I/Q Recording: captures raw I/Q data for external analysis

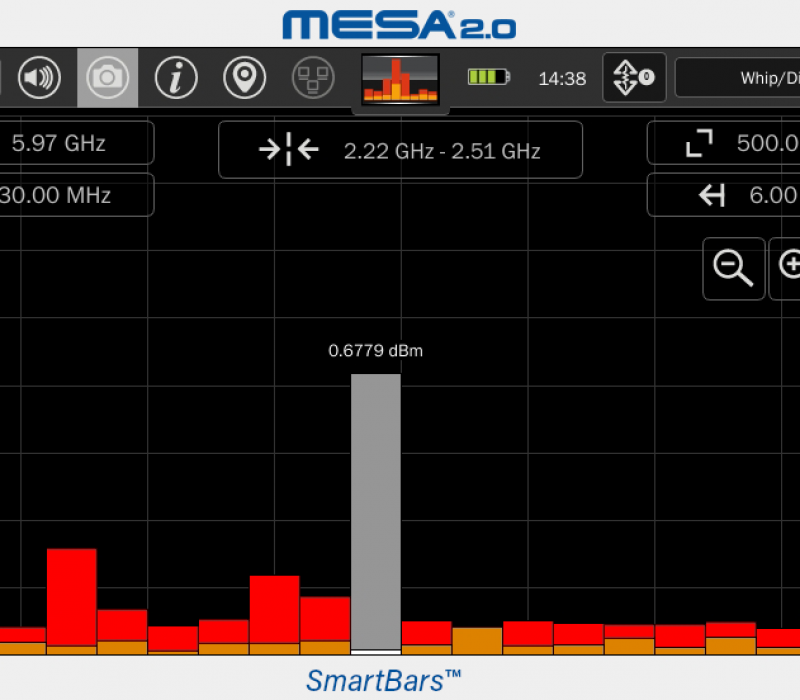

    • SmartBars™: displays new or increased RF energy in a bar graph
    • Mobile Bands: displays RF in specific bands (i.e. Wifi, GSM, etc.), includes new Jammer/Interference Detection feature with current production models

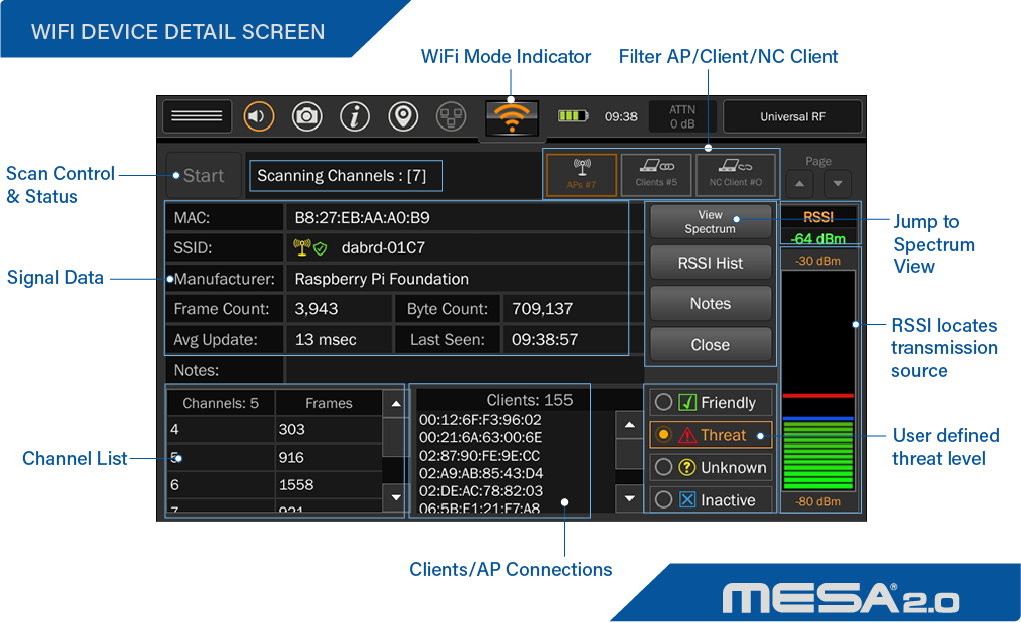

    • WiFi: displays nearby access points, clients, RSSI, signal data, channel, and more
    • Bluetooth®: displays nearby pairing activity
  • Display Features: Persistence, Raster Waterfall, Spectral Power Histogram (RSSI), Peak Trace, Average Trace, Patent Pending Cached Peak
  • Display & Controls: 7in/18cm capacitive touch screen with brightness and zoom controls
  • MCP (Multi-Carrier Probe): Carrier Current, Visible Light/IR, Ultrasonic, Audio Transformer, and Acoustic Leakage

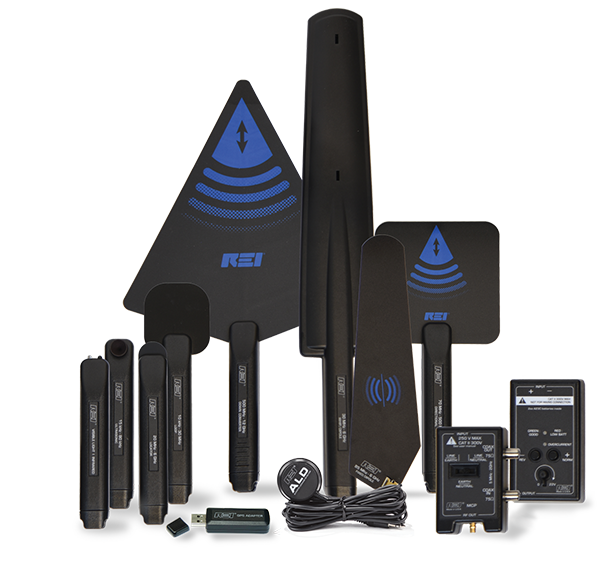

  • Antenna Probe Recognition automatically detects REI antennas/probes and adjusts display
  • Audio Demodulation: AM/FM
  • Alerts: haptic, audible, and visible
  • Remote Access: Ethernet port for VNC remote access
  • Signal List Generation: Manual or automatic depending on the mode
  • GPS: Removable USB, that captures and saves GPS data
  • Audio: Built-in speaker and external headphones with adjustable volume control
  • Microphone port for Acoustic Leakage Probe and Audio Transformer
  • Data Ports: 2 USB 2.0 Type-A ports for software upgrades, file storage, file transfer

Applications

  • Detect RF WiFi, Bluetooth®, cell phones, illicit transmissions
  • Interference detection & troubleshooting
  • RF research and development
  • Wireless industry developers
  • Intelligence protection
  • Communications Site Surveys
  • Eavesdropping detection
  • RF emissions analysis
  • Spectrum misuse investigation

Included Accessories

Accessories vary depending on selected model. Two MESA models are available: Basic, and Deluxe

Specifications

Project Performance
RECEIVER
Sweep Speed: >200 GHz/second
Operating Freq. Range 10 kHz - 6 GHz /*12 GHz
Resolution Bandwidth Variable depending on span 0.0380 kHz to 312.5 kHz
Instantaneous Bandwidth 25 MHz
DANL - Noise Floor 312.5 kHz RBW with Pre-amp: -90 dBm, 9.765 kHz RBW with Pre-amp: -110dBm
Attenuation 0 dB, 10 dB, 20 dB, Auto
Preamp +15 dB
Detection Types RF, Carrier Current, Acoustic Leakage, IR/Visible Light, Ultrasonic
Spurious Free Dynamic Range 81.6 db
Receiver Type Swept-tuned Superheterodyne
Audio Demodulation AM/FM demodulation with filter options Auto, 200 kHz, 20 kHz, 5 kHz
Input Port QMA connector (RF input) for included and auxiliary RF antennas
POWER
Supply AC: 100-240V/50-60Hz; single rechargeable Li-ion battery (includes 1 spare)
Run Time: ~3 hours (typical) per battery
Charge time ~3 hours per battery (typical)
MECHANICAL
Unit Dimensions: 5 x 8 x 2 in /13 x 20 x 5 cm
Unit Weight: 2.4lbs/1.1kg including battery

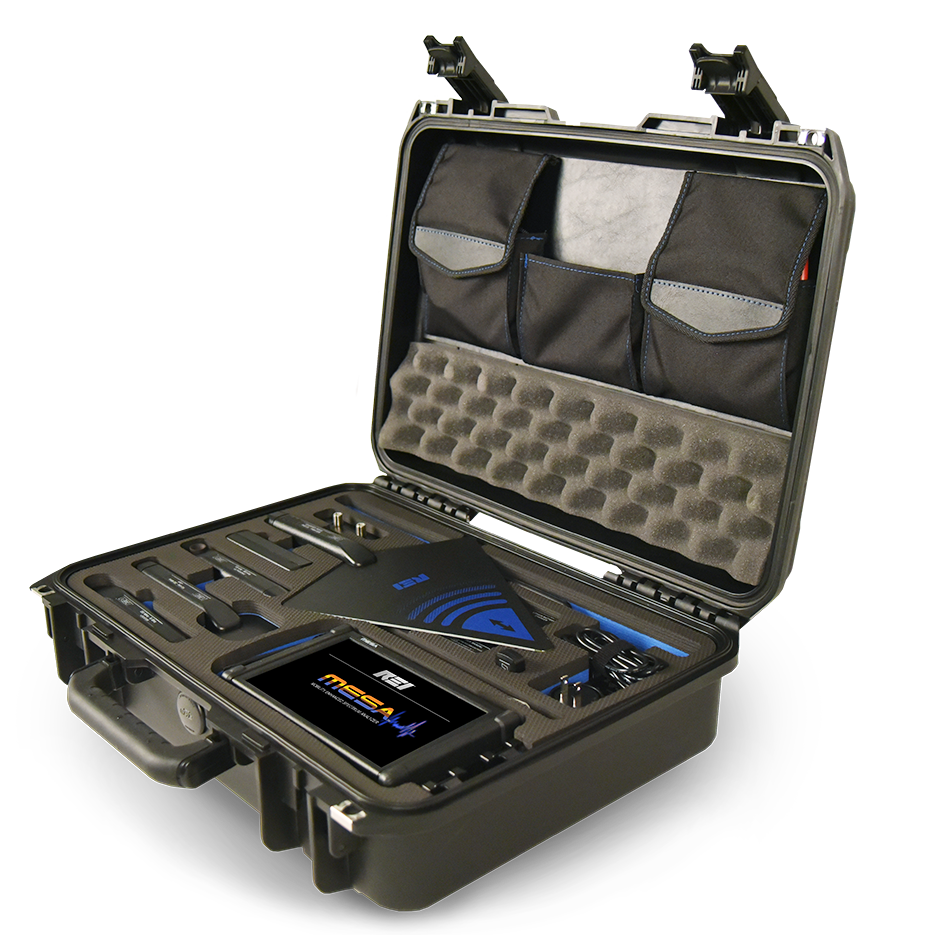

Case dimensions: 6 x 15 x 18.5in / 16 x 38 x 47cm
Case/Contents Weight: 15lbs. / 6.8kg
ENVIRONMENTAL
Operating temperature: -10° to 53° C
Battery charging temperature 5° to 37° C
Storage temperature -20° to 60° C
